Description
This data kit contain 3STL data.

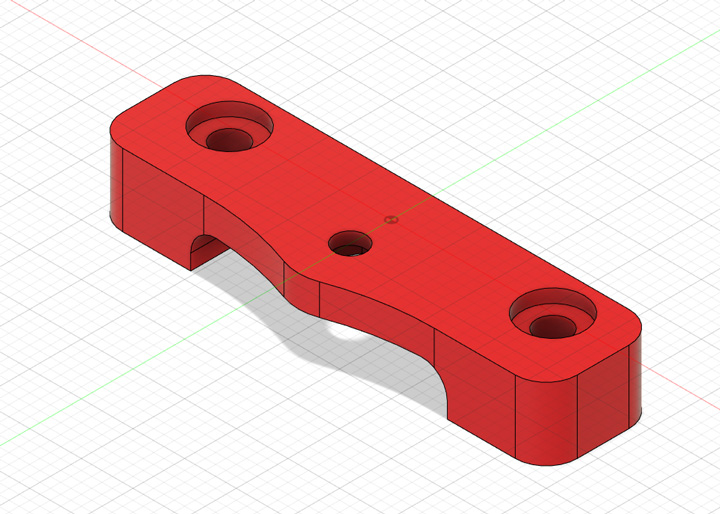

Stabilizerpivot base

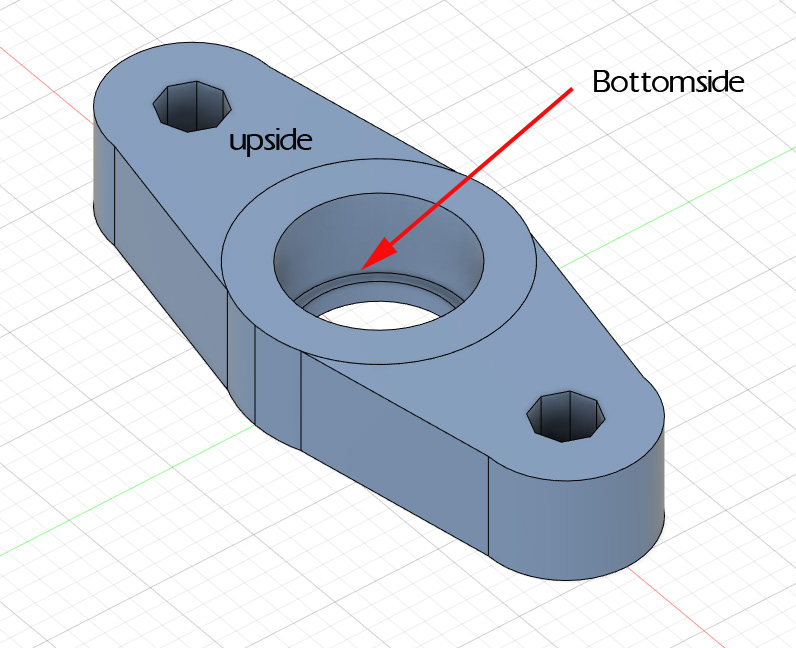

Seesaw
Damper cap for damper length extension
it has a vent hole, if you print them and close the hole, make 1mm diameter hole with drill
PrintCondition
Recommend filament material:PETG
infill density:80%<
infill pattern: recommend to Gyroid

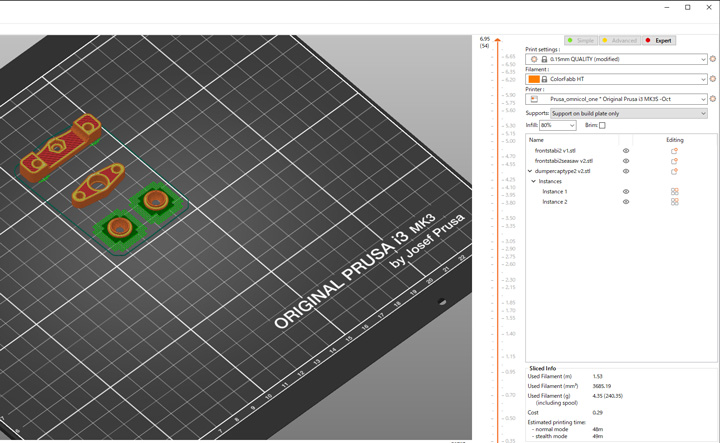

Slice sample
what you need without this kit
Assemble
is very easy

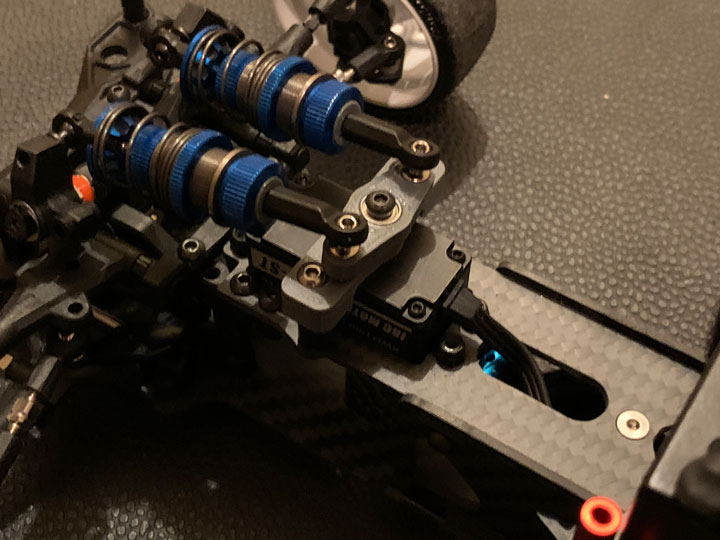

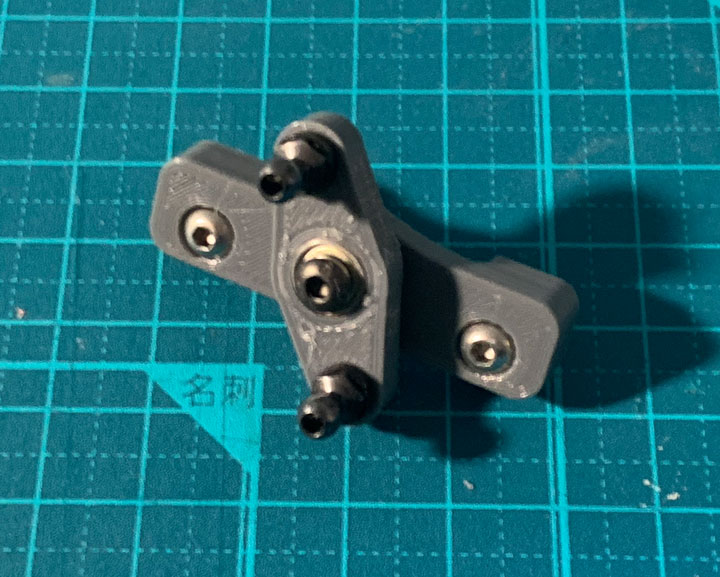

Pivot base and seesaw ware fixed with suitable M3 screw and some sim. It is very important for moving very smoothly without any play.

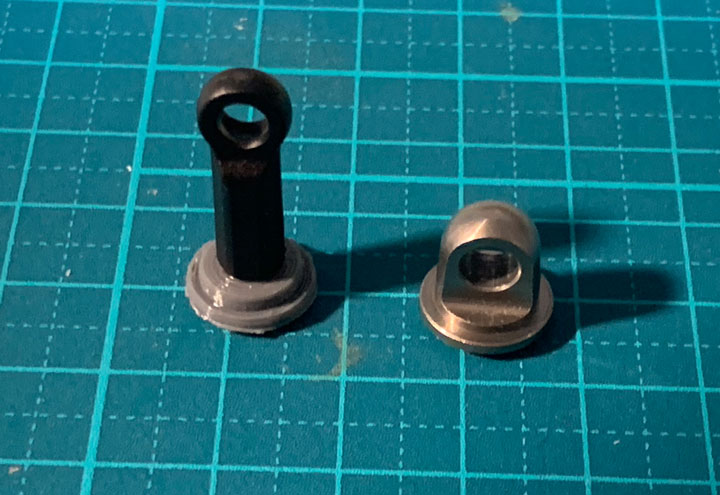

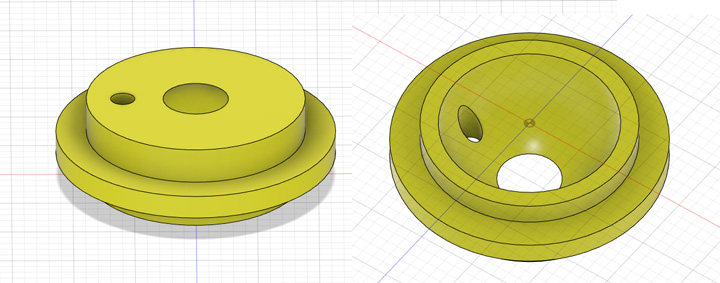

Damper Cap

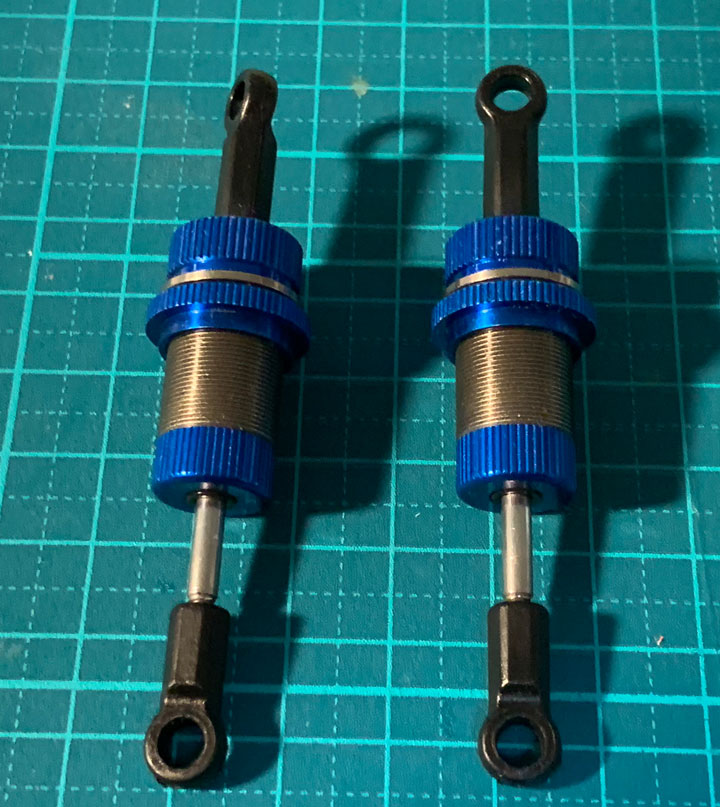

Due to extending the damper length, replace the original cap with a printed one.
use M3*6mm screw, fix the new cap and 4.8π Rodend.I

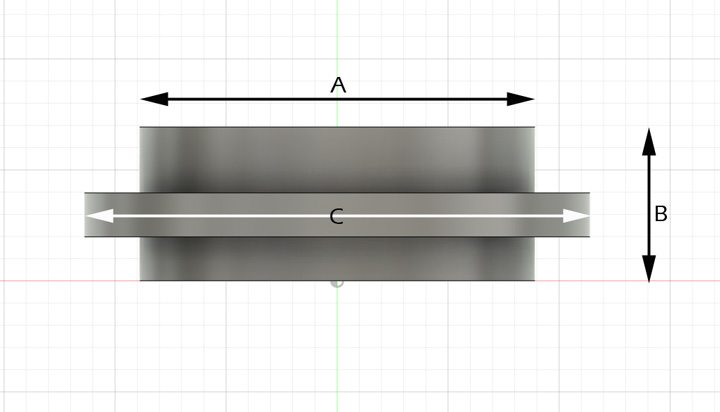

If the damper cap doesn’t fit your damper, please send me an email(crafthubmaster@gmail.com) those values in the metric unit, and Damper Brand, Product Name, I will design and send you an STL file via email.
